Brick Making Machinery

• Accessories
• Conveyor Belt, Pallet Trolley, Hydraulic System

• Automatic Grade
• Automatic

• Automation Grade
• Automatic

• Capacity
• 1500-2000 bricks/hour

• Color
• Standard (as per image)

• Computerized
• Yes

• Control System
• PLC Control

• Dimension (L*W*H)
• 2600 x 2100 x 2600 mm

• Drive Type
• Electric

• Driven Type
• Electric Motor

• Efficiency (%)
• 90-95%

• Features
• High Production Capacity, Robust Construction, Energy Efficient, Low Maintenance

• Frequency
• 50 Hz

• Installation Guideline
• On-Site Installation and Commissioning Provided

• Machine Type
• Vertical

• Material
• Mild Steel

• Model No
• 12 Kvt

• Motor Power
• 12 kW

• Plastic Processed
• Fly Ash & Cement Mixture

• Power
• 12 kW

• Power Consumption
• 12-15 kW per hour

• Production Capacity
• 12000-15000 Bricks/8 Hour Shift

• Speed
• Variable as per requirement

• Surface Finish
• Other, Powder Coated

• Temperature Range
• Ambient

• Type
• Automatic Fly Ash Brick Making Machine

• Usage & Applications
• Manufacturing Fly Ash Bricks

• Voltage
• 415 V

• Weight (kg)
• Approx. 3500 kg

• Accessories
• Safety Cover, Discharge Valve, Control Panel

• Automatic Grade
• Semi-Automatic

• Automation Grade
• Semi-Automatic

• Capacity
• 50 Kg/Batch

• Color
• Steel Grey

• Computerized
• No

• Control System
• Other, Manual

• Dimension (L*W*H)
• 42 x 24 x 40 Inch

• Drive Type
• Other, Belt Drive

• Driven Type
• Electric

• Efficiency (%)
• 95%

• Features
• High Mixing Efficiency, Low Maintenance, Rust Resistance Housing, Sturdy Construction

• Frequency
• 50 Hz

• Installation Guideline
• Floor Mounted, Ready to Install

• Machine Type
• Vertical Color Mixer

• Material
• Stainless Steel

• Model No
• CMM-3HP

• Motor Power
• 3 HP

• Plastic Processed
• PP, PE, ABS, PC, PVC

• Power
• 3 HP

• Power Consumption
• 2.2 kW/hr

• Production Capacity
• 500 Kg/Day

• Speed
• 1440 RPM

• Surface Finish
• Polished

• Temperature Range
• Ambient to 60C

• Type
• Color Mixture Machine

• Usage & Applications
• Plastic Granule Color Mixing, Masterbatch Mixing, Additive & Pigment Mixing

• Voltage
• 415 V

• Weight (kg)
• 180 kg

• Accessories
• Adjustable Stand, Side Rails, Emergency Stop Switch

• Automatic Grade
• Automatic

• Automation Grade
• Automatic

• Capacity
• 100-500 kg/hr

• Color
• Blue/Green/Black (standard options)

• Computerized
• No

• Control System
• Other, Electric Panel

• Dimension (L*W*H)
• Customized as per requirement, Common: 5000 x 600 x 900 mm

• Drive Type
• Other, Geared Motor Drive

• Driven Type
• Gear Box Driven

• Efficiency (%)
• 98%

• Features
• Heavy Duty, Corrosion Resistant, High Load Capacity, Low Maintenance, Adjustable Speed

• Frequency
• 50/60 Hz

• Installation Guideline
• Floor Mounted, Professional Installation Recommended

• Machine Type
• Belt Conveyor with Gear Box

• Material
• Mild Steel, PVC Belt

• Model No
• CBGB-2024

• Motor Power
• 2 HP

• Power
• 2 HP (customizable)

• Power Consumption
• 1.5-2.5 kW

• Production Capacity
• Up to 200 meters per hr

• Speed
• 10-40 m/min (Variable)

• Surface Finish
• Other, Powder Coated

• Temperature Range
• -10C to 60C

• Type
• Conveyor Belt With Gear Box

• Usage & Applications
• Material Handling, Packaging, Assembly Lines, Warehousing, Logistics

• Voltage
• 220-380 V AC

• Weight (kg)
• Approx. 250-500 kg (varies by length)

• Accessories
• Starter, Safety guard, Wheel for mobility (optional)

• Automatic Grade
• Semi-Automatic

• Automation Grade
• Semi Automatic

• Capacity
• 400 - 700 kg/hr

• Color
• Industrial Grey / Custom

• Computerized
• No

• Control System
• Other, Manual / Electrical Panel

• Dimension (L*W*H)
• 1800 x 1200 x 1500 mm (approx.)

• Drive Type
• Other, Helical Gear Box

• Driven Type
• Gear Driven

• Efficiency (%)
• 85 - 90%

• Features
• Robust construction, High mixing efficiency, Easy operation, Low maintenance

• Frequency
• 50 Hz

• Installation Guideline
• Foundation required, Electrical connection by certified technician

• Machine Type
• Industrial Mixer

• Material
• Mild Steel (MS) / Stainless Steel (SS)

• Model No
• DPPM-HG

• Motor Power
• 5 HP - 7.5 HP

• Power
• 5 HP

• Power Consumption
• 4-6 kW

• Production Capacity
• Up to 10 tons per shift

• Speed
• 35 - 40 RPM

• Surface Finish
• Other, Painted / Powder Coated

• Temperature Range
• Ambient

• Type
• Double Plate Pan Mixture with Helical Gear Box

• Usage & Applications
• Used for mixing fly ash, cement, sand and aggregates for bricks/blocks manufacturing

• Voltage
• 415V (Three Phase)

• Weight (kg)
• Approx. 800 - 1000 kg

• Accessories
• Standard Tool Kit, Electric Panel

• Automatic Grade
• Automatic

• Automation Grade
• Automatic

• Capacity
• Rapid Continuous Production

• Color
• Green

• Computerized
• No

• Control System
• PLC Control

• Dimension (L*W*H)
• 3600 mm x 1500 mm x 2100 mm

• Drive Type
• Electric

• Driven Type
• Electric Motor

• Efficiency (%)
• Over 90%

• Features
• High Efficiency, Sturdy Construction, Corrosion Resistant

• Frequency
• 50 Hz

• Installation Guideline
• Requires Concrete Foundation and Skilled Technician

• Machine Type
• Rotary Brick Making Machine

• Material
• Mild Steel

• Model No
• Four Kvt Rotery

• Motor Power
• 35 HP

• Plastic Processed
• Clay

• Power
• 35 HP

• Power Consumption
• Low

• Production Capacity
• 40,000 - 60,000 bricks per 8 hours

• Speed
• Up to 20 rpm

• Surface Finish
• Painted

• Temperature Range
• Ambient - 60C

• Type
• Rotary Clay Bricks Machine

• Usage & Applications
• For manufacturing clay bricks

• Voltage
• 440V

• Weight (kg)
• 3200 kg

• Accessories
• Standard tool kit, user manual provided

• Automatic Grade
• Automatic

• Automation Grade
• Automatic

• Capacity
• 3000-6000 pcs/hr

• Color
• Blue & Silver

• Computerized
• Yes

• Control System
• PLC Control

• Dimension (L*W*H)
• 1650 x 1200 x 1550 mm

• Drive Type
• Electric

• Driven Type
• Motor Driven

• Efficiency (%)
• High ( 95%)

• Features
• High efficiency, robust construction, low maintenance

• Frequency
• 50 Hz

• Installation Guideline
• Requires leveled firm base, connect power supply as per voltage rating

• Machine Type
• Rotary Type

• Material
• Stainless Steel

• Model No
• HSR-6000

• Motor Power
• 5 HP

• Plastic Processed
• Applicable (if needed) for material feeding

• Power
• 3-5 kW

• Power Consumption
• 4 kW/hr

• Production Capacity
• Up to 6000 pcs/hr

• Speed
• 1440 RPM

• Surface Finish
• Other, Powder Coated

• Temperature Range
• Ambient to 80C

• Type

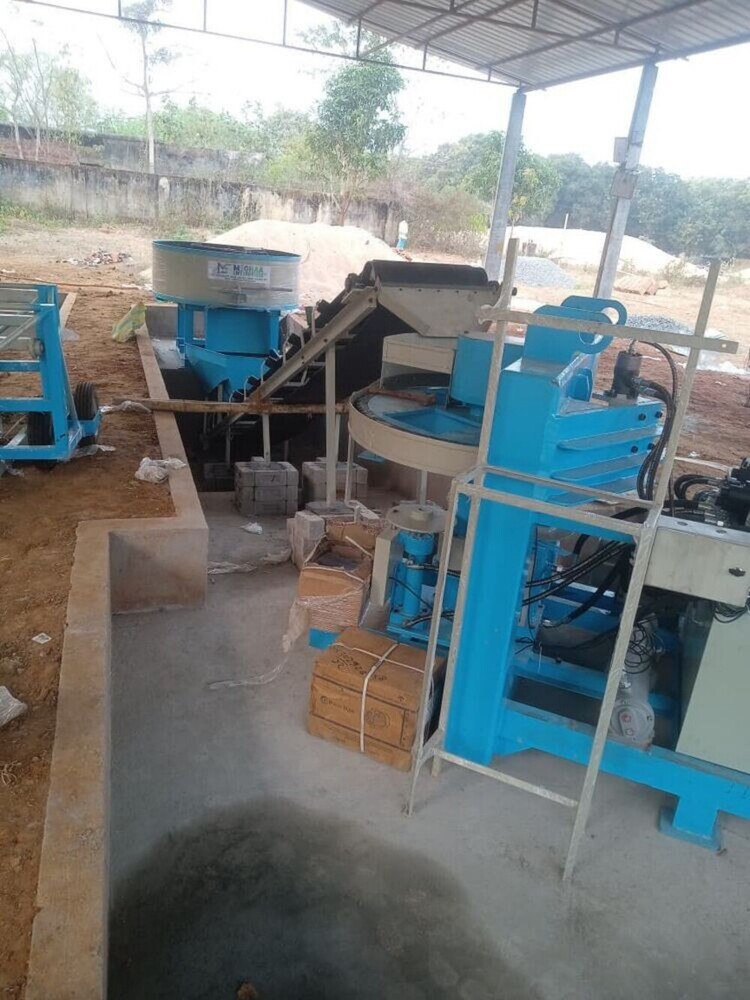

• High Speed Rotary Machine

• Usage & Applications
• Industrial, used for high-speed processing and production automation

• Voltage
• 220-380 V

• Weight (kg)
• 1200 kg (approx.)

• Accessories
• Moulds, Conveyors, Control Panel

• Automatic Grade
• Automatic

• Automation Grade
• Automatic

• Capacity
• 8,000-12,000 Bricks/hour

• Color
• Orange and Blue

• Computerized
• Yes

• Control System
• PLC Control

• Dimension (L*W*H)
• 5200 x 2100 x 2500 mm

• Drive Type
• Electric

• Driven Type
• Gear Driven

• Efficiency (%)
• Above 92%

• Features
• High Output, Low Maintenance, Robust Build, Energy Efficient, Consistent Quality Bricks

• Frequency
• 50 Hz

• Installation Guideline
• Onsite technical support provided

• Machine Type
• Fully Automatic Brick Making Machine

• Material
• Mild Steel

• Model No
• HSRBM-126

• Motor Power
• 75 kW

• Plastic Processed
• Clay

• Power
• 75 kW

• Power Consumption
• Low

• Production Capacity
• 80,000-100,000 Bricks/day

• Speed
• High Speed Operation (up to 38 r/min)

• Surface Finish
• Other, Paint Coated

• Temperature Range
• Room Ambient Temperature Operation

• Type
• High Speed Clay Brick Machine

• Usage & Applications
• Clay brick manufacturing for construction industry

• Voltage
• 380-440 V

• Weight (kg)
• 6800

• Accessories
• Handle, Load wheels, Platform

• Automatic Grade
• Manual

• Automation Grade
• Manual

• Capacity
• 600 kg

• Color
• Yellow & Black

• Computerized
• No

• Dimension (L*W*H)
• 900 x 500 x 460 mm (Approx.)

• Drive Type
• Manual

• Driven Type
• Hydraulic, Manual

• Efficiency (%)
• High operational efficiency

• Features
• Easy to operate, Heavy-duty frame, Sturdy wheels, Rust-resistant powder coating, Leak-proof hydraulic system

• Installation Guideline
• No installation required, ready to use

• Machine Type
• Mobile Hydraulic Trolley

• Material
• Mild Steel

• Model No
• HT-600

• Power
• Hydraulic Manual

• Production Capacity
• As per requirement

• Speed
• Manual operation / Depends on user

• Temperature Range
• -10C to 50C

• Type
• Hydraulic Trolley

• Usage & Applications
• Material handling in warehouses, factories, workshops, loading/unloading goods

• Weight (kg)
• 72 kg (Approx.)
